KIRO FILL Automatic Drug Preparation Device
Grifols KIRO-Fill 1Grifols KIRO-Fill 3Grifols KIRO-Fill 4Grifols KIRO-Fill 5Grifols KIRO-Fill 6Grifols KIRO-Fill 7

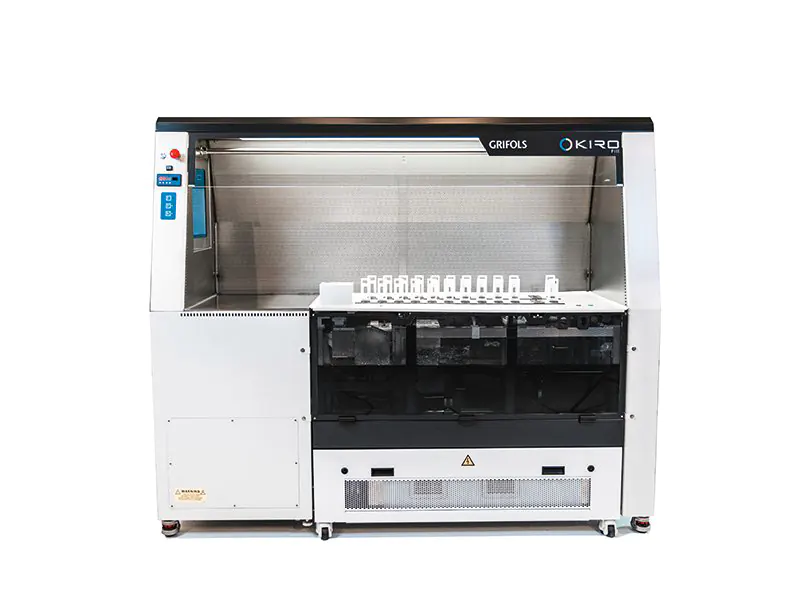

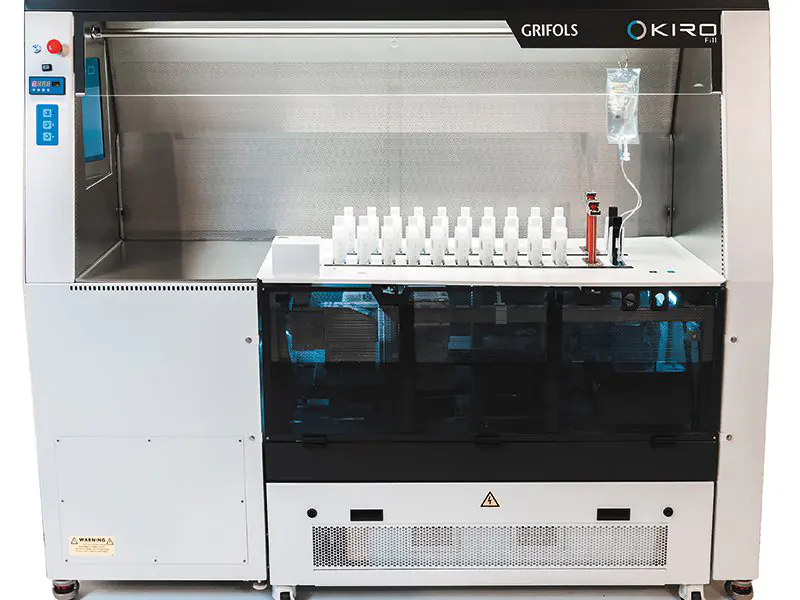

KIRO FILL Automatic Drug Preparation Device

GRIFOLS

KIRO Fill, designed for sterile medication preparation of non-harmful drugs; It includes touch screen for user instructions and approvals, barcode and RFID systems to identify and control the source and end containers used.

Features

  • Touchscreen for user instructions and approvals,
  • Barcode / datamatrix and RFID systems to identify and control the source and end containers used,
  • Manual loading and unloading,
  • Barcode scanning of raw materials,
  • RFID for in-process tracking,
  • Up to 20 loading positions for end syringes (including 3 mL, 5 mL, 10 mL, 20 mL, 30 mL, and 60 mL),
  • Source bags and vials of different brands and sizes are supported,
  • LED guided positioning,
  • Two automated units operating in parallel transfer syringes via Luer Lock connections to withdraw solutions from source containers and fill syringes,

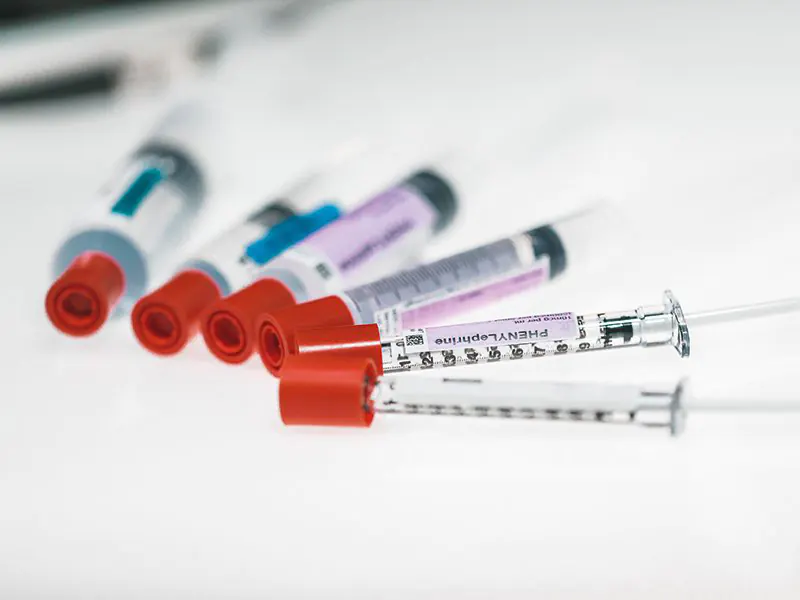

  • Automatic closing of syringes with tamper-evident caps,
  • Control of used source containers and remaining drugs,
  • ISO 5 aseptic environment in material preparation, loading and unloading areas and lower preparation area,
  • Horizontal air flow with HEPA H14 filter,
  • Continuous monitoring of:
    • Airflow operation,
    • Number of non-living particles,
    • Heat.
PDF Brochure Get a quote Up-to-date Catalog

Security

  • ISO 5 aseptic preparation environment maintains sterility during the production of non-hazardous compound sterile preparations,
  • Automation minimizes the risk of contamination and improves dosing accuracy,
  • Repetitive stress and needlestick injuries are alleviated,
  • Guided and software-controlled manual loading and unloading of consumables for enhanced patient safety.

Control and Traceability

  • Loading and auto-assembly processes are controlled via barcode scanning and RFID identification,
  • Automatically generated batch reports to ensure traceability through production, including environmental monitoring data.

Flexibility and Efficiency

  • Unique design and small footprint consume minimal valuable clean room space while facilitating optimization of workload, workflow and staff time and high productivity,
  • Integrates two automatic units working in parallel,
  • Placement of source and end cups in a wide variety of sizes and types,
  • Party and patient-specific compound sterile preparations,
  • Optimized use of drugs and leftovers.

Regulatory Compliance

Compliance with supported USP and GMP regulations by standardizing aseptic procedures, facilitating personnel and process qualification,

Airflow operation and temperature control and optional continuous particle counter to meet GMP requirements,

Fully maintained during deployment, qualification, and periodic maintenance, including dosing accuracy tests and airflow certifications addressing smoke tests under dynamic conditions for USP compliance,

KIRO Oncology meets electrical safety requirements with UL listing marked according to IEC 61010 and EMC certification according to IEC 61326-1.

Automatic Drug Preparation Device

Automatic drug preparation devices are used for sterile preparation of sterile and unclean ready-made drugs. Traceability is achieved by using a barcode/data matrix and RFID systems that identify and control the last source and containers used.
